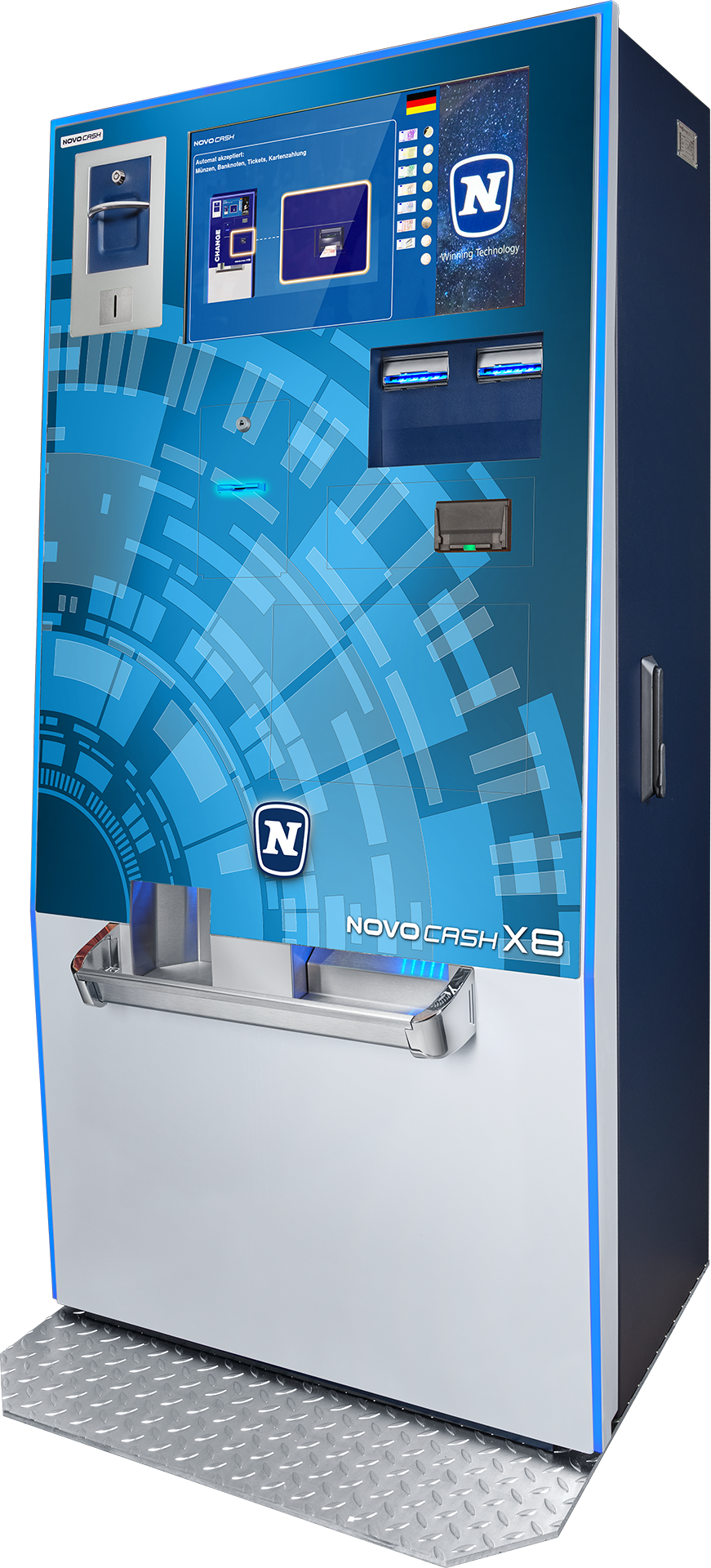

NOVO CASH
X8

Key Features

• TITO: Issuance / redemption of tickets
• Cashless: cash to card / card to cash
• Sports betting: payout wins via barcode
• Money changer
• Bank card, contactless

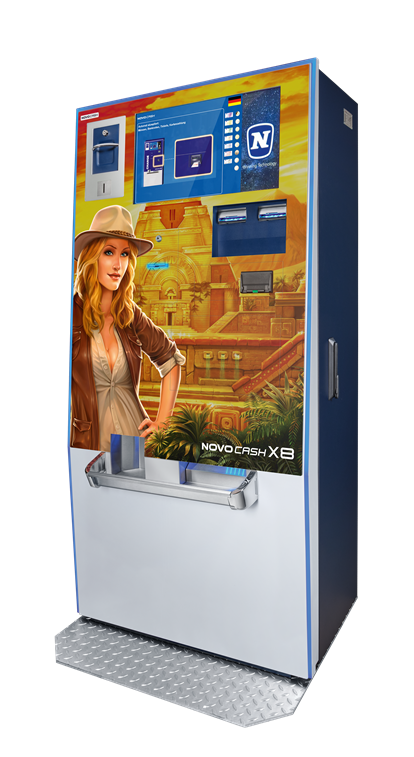

• Custom front design

Main Unit

• Security cabinet in steel blue / white aluminium
• 24“touchscreen display
• Banknote dispenser LCDM with 1, 2 or 4 cassettes
  Capacity approx. 1,000 notes per cassette
  (max. of 4,000 banknotes total)
  Payout note by note (spray dispensing)
• RFID card reader for service functions
• Banknote validator / 2 possible
  JCM UBA Pro / Cash box 400/900 notes
  JCM iPRO / Cash box 400/900 notes

Options

• Maximum of 6 coin hoppers
  3 coin hoppers have an extension
  (for up to 8,500+ coins together)
  3 additional hoppers and a cash box are possible
• Note recycler instead of note validator
  JCM iPRO-RC, JCM UBA Pro-RQ or JCM MRX
• Coin acceptance via coin bulk feeder
  (for up to 250 coins at once)

• Secure checking, processing and dispensing of coins
  and banknotes
• RFID card reader for service functions
  e.g. staff accounts: deposit and withdrawal
  Player card compatibility

• ITHAKA Epic 950 TITO ticket printer and receipt printer
  TITO tickets, receipts, statistics print outs
• Barcode /QR-Code scanner
• Prepared for integration of a bank card payment device /
  PIN Pad

Modern PC and Software Technology

• Modern industrial PC
  Reliable fanless Linux PC with SSD
  Uninterruptible Power Supply (UPS)
• NOVO Cash X-Software concept
  Service interface for a wide range of settings
  Documentation of all operations
  Extensive statistics
  Simple and ergonomic cashier interface
  Status and function messages by e-mail
  Internet connection and thus remote enquiry, remote
  maintenance, remote update possible
  Extensive analysis options for technicians
• Integration in most Casino Management Systems possible

• Cabinet and front door made out of 3 mm sheet steel
• Front door with enhanced 10-point locking mechanism
• Locking lever with double-bit lock and additional lock cover
• Double-locking system (4-eye principle)
• High resistance against break-in
