HARDWARE

FEATURES

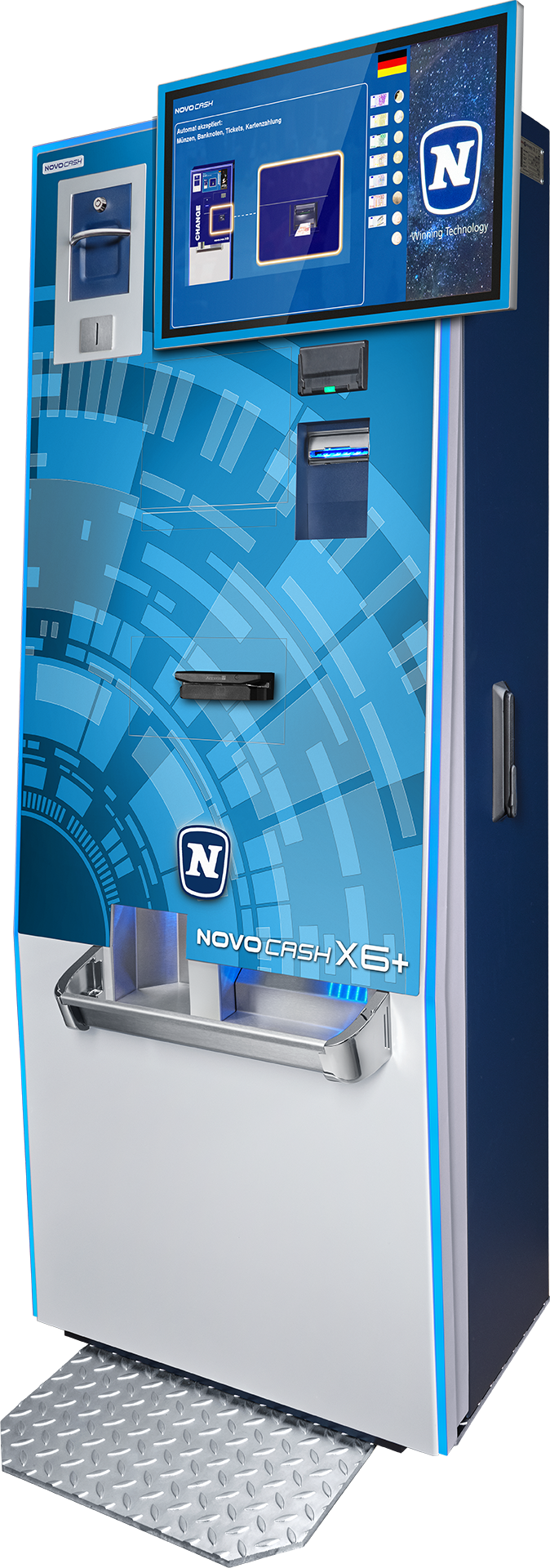

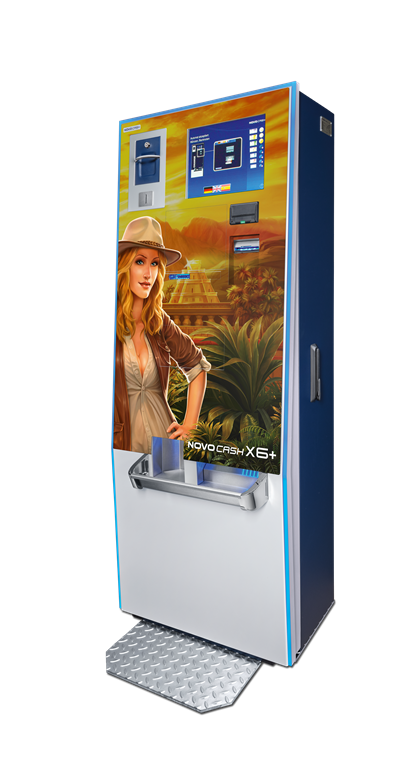

NOVO CASH X6+

VENUE MANAGEMENT

  • Secure checking, processing and dispensing of coins
    and banknotes
  • RFID card reader for service functions
    e.g. staff accounts: deposit and withdrawal
    Player card compatibility
  • ITHAKA Epic 950 TITO ticket printer and receipt printer
    TITO tickets, receipts, statistics print outs
  • Barcode /QR-Code scanner
  • Prepared for integration of a cank card payment device /
    PIN Pad

THE TECHNOLOGY

Modern PC and Software Technology

  • Modern industrial PC
    Reliable fanless Linux PC with SSD
    Uninterruptible Power Supply (UPS)
  • NOVO Cash X-Software concept
    Service interface for a wide range of settings
    Documentation of all operations
    Extensive statistics
    Simple and ergonomic cashier interface
    Status and function messages by e-mail
    Internet connection and thus remote enquiry, remote
    maintenance, remote update possible
    Extensive analysis options for technicians
  • Integration in most Casino Management Systems possible

      NOVO CASH SECURITY CLASS III+

      • Cabinet and front door made out of 3 mm sheet steel
      • Front door with enhanced 8-point locking mechanism
      • Locking lever with double-bit lock and additional lock cover
      • Double-locking system (4-eye principle)
      • High resistance against break-in

      DESIGN

      • Blue illuminated design edge around front door
      • Blue front panel
      • optional: coloured front design BLUE CIRCLE or individual
        front design according to customer requirements

      Technical Data

      • Cabinet: 72 cm x 179 cm x 59 cm (W x H x D)
      • Base plate: 70 cm x 67 cm (W x D)
      • Weight: 300 kg (depending on configuration)
      • Power Supply: 110-230V

      CASH HANDLING

      Key Features

      • TITO: Issuance / redemption of tickets
      • Cashless: cash to card / card to cash
      • Sports betting: payout wins via barcode
      • Money changer
      • Bank card, contactless
      • Custom front design

      Main Unit

      • Security cabinet in steel blue / white aluminium
      • 15“ or 24“ touchscreen display
      • Banknote dispenser LCDM with 1, 2 or 4 cassettes
        Capacity approx. 1,000 notes per cassette
        (max. of 4,000 banknotes total)
        Payout note by note (spray dispensing)
      • RFID card reader for service functions
      • Banknote validator
        JCM UBA Pro / Cash box 400/900 notes
        JCM iPRO / Cash box 400/900 notes

      Options

      • Maximum of 6 coin hoppers
        3 coin hoppers have an extension
        (for up to 7,500+ coins together)
        3 additional hoppers are possible
      • Note recycler instead of note validator
        JCM iPRO-RC, JCM UBA Pro-RQ, CashCode Bill-2-Bill
      • Coin acceptance via coin bulk feeder
        (for up to 250 coins at once)
